ROWE AMI WALL BOX WRD-200

[chris65]

Bonjour

je viens de récupérer une ROWE AMI WALL BOX WRD-200.

Je recherche la doc technique de cette wallbox.

Une aide pour la connectique (0.. 24V, signal , etc..)

merci

christophe

[Scudie]

Hi Christophe

If you are contemplating connecting a Rowe Ami WRD 200 to a wallbox2mp3 adapter it may be an idea to email Fabien or Gaëlle for advice on the compatibility of a Rowe Ami WRD 200 with a wallbox2mp3 unit, as far as I can see the WRD is not currently on the list of compatible wallbox’s although there is a photo of one adjacent to the list which is a little confusing.

There is a manual for the WRA WRB & WRC in the Support section, I think the WRD was there first wallbox that was solid state so the manual for the others may be of no use to you with the WRD.

Sorry I can’t be of any further help with the manual.

Cheers Scudie

[chris65]

Hello Scudie

thanks for these informations, The WRD is an solid state. I will ask Gaelle to know for interfacing with Wallbox2MP3.

For know , I just need some schematic to understand how I can connect the power supply, to put power ON first.

I was looking on internet , and I don’t find any manual to buy on WRD 200

Regards

Christophe.

[Scudie]

Hi Christophe

Perhaps if you could post a photo of the inside of the WRD showing the connector strip someone may be able to identify them?

Cheers Scudie



[Randy]

There is a WRD manual on the US Ebay site.  But like Scudie I don’t think there is a currently available adapter.  The CDadapter folks have an emulator for the E &F models but the solid state boxes can be expensive to emulate.  Powering it up should not be a problem though show us the pictures.



Randy

[chris65]

Ok ,thank, I found the schematic on US Ebay.

See the connector picture.

Regards.

Christophe.

[chris65]

Hi Randy

thanks , I will look for on ebay site.

See attached the picture of the connector for the wallbox.

Regards.

Christophe

[Randy]

Also, I have a solid state ROWE – the CD WB.  Perhaps the connector strip in that is similar to yours.  The top terminal is labeled AC Power and the second terminal is AC Common.  It is a 24v transformer.

Randy

[Randy]

OK so yours is basically the same with power and ground/common on the top two terminals.  On your strip common is the top terminal and power is the second.  I bought a Ring Doorbell transformer from Amazon to power mine, I think the French Amazon site has them as well.  Really any 24v AC transformer will work.



Randy

[Scudie]

Good Aternoon Guys

From Memory that connector strip looks to be different to the WRA that I converted & have the manual for. Glad that Randy was able to help although the label should be fairly self explanatory.

On the subject of transformers I use a 25Vac terroidal tranformer from RS electronics, they do appear to have a French website.

https://fr.rs-online.com/web/

The part number is 671-8956

I Don’t  know how they compare in price to stuff for sale on Ebay  might be worth taking a look.

Cheers Scudie

[chris65]

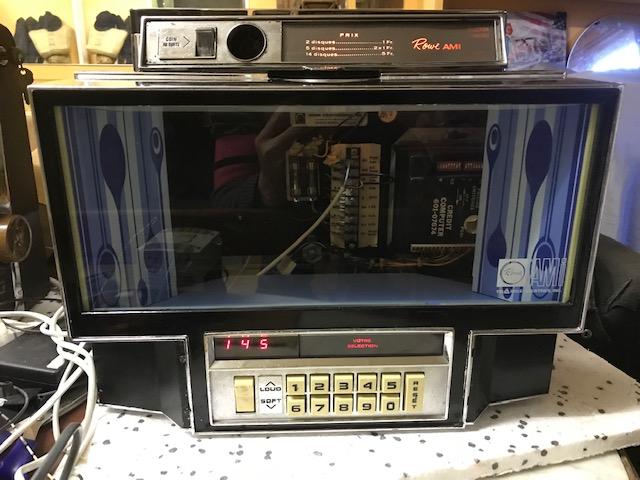

OK Randy, thanks, I connected an 24 AC power as your mentionned and the wallbox is running.

Now I just have to analyse the signal on Data line and clock line to see when I do a disk selection , if it is compatible with wallbox2MP3, I will ask Gaelle.

[Scudie]

Good to see you have it powered up, will be interesting to see what you are able to do with it, keep us informed.

Cheers Scudie

[Randy]

Good looking wallbox, I hope you get it working.  It does not appear to be much different than the Seeburg DEC, maybe Fabien can adapt that emulator for this box.

Randy
